Détails des produits

À la maison Produits

chaîne de production de panneau de laine de laitier

Fully Automatic High Capacity Variable Speed PU Sandwich Panel Making Machine for Prefab House Production Line

Fully Automatic High Capacity Variable Speed PU Sandwich Panel Making Machine for Prefab House Production Line

Nom De Marque:	Greenson
Nombre De Pièces:	1
Prix:	$790000
Conditions De Paiement:	LC, T/T

Informations détaillées

Description du produit

Informations détaillées

Lieu d'origine:

Hebei

Nom du produit:

Panneau "sandwich" automatique d'unité centrale faisant la chaîne de production de mac

Mot-clé:

Chaîne de production sectionnelle de machine de panneau de porte de garage de sandwich de mousse de

Couleur:

Exigence du client

Fonctionnalité:

Entièrement automatique

Détails d'emballage:

Film plastique

Port de dépêche:

TianJin

composants de base:

PLC, moteur, incidence, moteur, pompe

arguments de vente clés:

Facile à utiliser

Application:

Toit et mur

Tension:

380V 50Hz 3phases (modifiable selon les besoins)

Description du produit

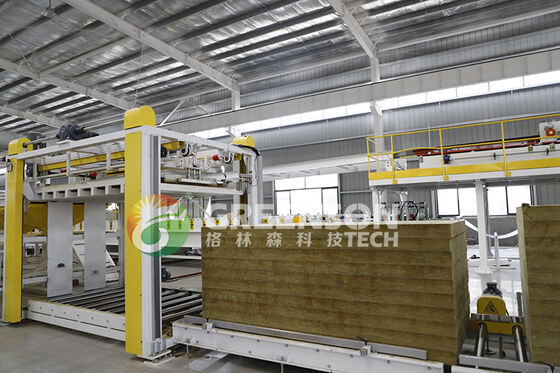

Automatic PU Sandwich Panel Making Machine Production Line For Prefab House

Product Overview

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.

Fully Automatic: Effortlessly produces high-quality sandwich panels
High Capacity: Handles large-scale production with efficiency
Variable Speed: Adjusts to match production needs for optimal output
Multiple Material Options: Suitable for color steel sheets, galvanized sheets, and aluminum sheets
Guaranteed Quality: Equipped with video factory inspection and mechanical test reports

Production Process

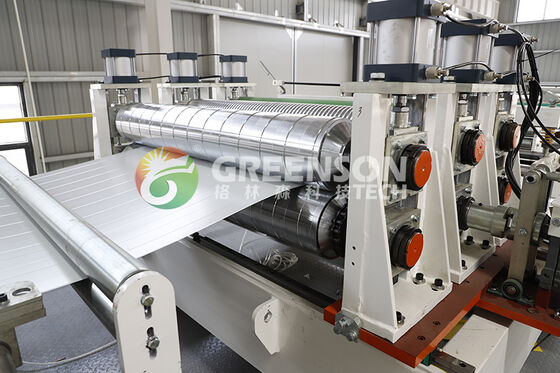

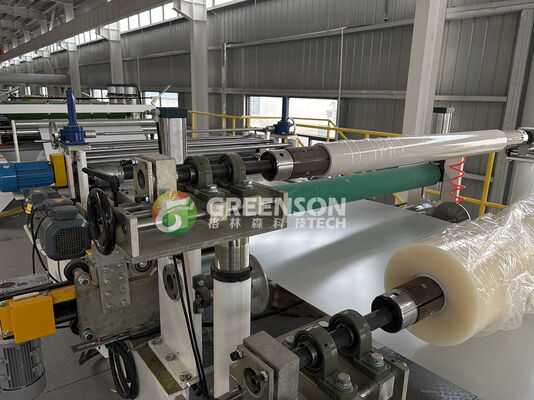

Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
Precision low-speed metering pump with computer-controlled frequency regulation
Accurate dosing and stepless speed adjustment capabilities

Product Capabilities

Produces various flat and corrugated sheet types
Sandwich panels: thickness 40-300 mm, width 950-1200 mm
High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials

Technical Specifications

Material Type	Color steel sheet; Galvanized sheet; Aluminum sheet
Material Thickness	0.3-0.8 mm
Material Width	≤1250 Mpa
Suitable Panel Length	2000-18000 mm
Suitable Panel Width	500-1200 mm
Suitable Panel Thickness	30-250 mm (excluding corrugation height)
Production Speed	3-15 m/min (Adjustable)

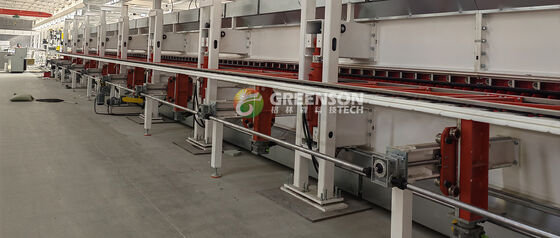

Valid Length of Double Belt Conveyor	12000-42000 mm
Work Pressure on Pouring Foam	150-200 Bar
Total Power	660 kW / 300 kW
Total Dimensions	130000 × 15000 × 6000 mm (Length × Width × Height)
