Automatic 60x60cm PVC Coated Gypsum Ceiling Tile Making Machine with 1300mm Effective Laminating and 2-6 Million Sq.m/year Capacity

Automatic 60x60cm PVC Coated Gypsum Ceiling Tile Making Machine with 1300mm Effective Laminating and 2-6 Million Sq.m/year Capacity

Nom De Marque: LVJOE
Numéro De Modèle: 1300FM
Nombre De Pièces: 1 ligne
Prix: US $20000-200000
Conditions De Paiement: L / C, T / T
Capacité à Fournir: 10 lignes par an
Informations détaillées
Lieu d'origine:
Hebei , Chine (continentale)
Certification:
ISO CE
Nom de produit:
Machine automatique/semi-automatique de plafond de gypse enduite par PVC de cloison sèche de 60x60cm
Mot-clé:
Machine de fabrication de plaques de plâtre laminées en PVC
Type de carte fini:
PVC Board de gypse stratifié
Plastiquant efficace:
1300 mm
Contrôle électrique:
Système PLC
Capacité de production:
2 à 6 millions de m²/an
Service après-vente:
Ingénieurs disponibles au service
Type de colle:
Glue d'eau pour le film PVC

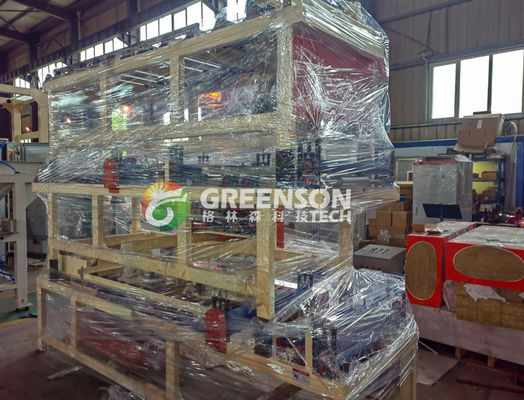

Détails d'emballage:
Emballage standard
Capacité d'approvisionnement:
10 lignes par an
Mettre en évidence:

60x60cm Gypsum Ceiling Tile Making Machine

,

1300mm Effective Laminating PVC Coated Gypsum Board Machine

,

2-6 Million Sq.m/year Gypsum Board Lamination Machine

Description du produit
Automatic/Semi-Automatic 60x60cm Drywall PVC Coated Gypsum Ceiling Tiles Making Machine

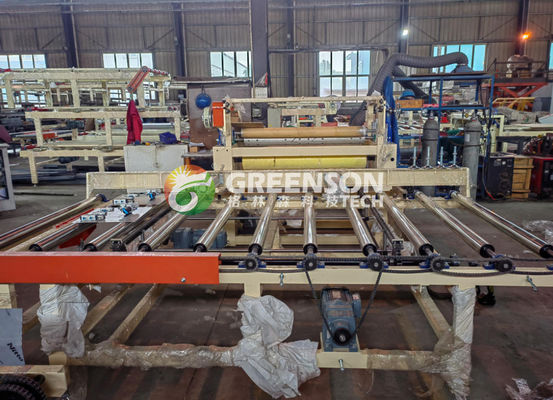

This advanced machine is designed for laminating fiber glass, paper, PVC film and aluminum foil on gypsum board to produce high-quality ceiling tiles and partition wall panels.
Key Specifications
Attribute Value
Finished board type PVC laminated gypsum board
Effective laminating 1300mm
Electric control PLC system
Production Capacity 2-6 million Sq.m/year
Speed 2-15m/min (adjustable)
After-sales Service Engineers available to service
Warranty 1 year
Glue type Water Glue for PVC film
Automatic Gypsum Board Feeding Machine
  • Cylinder pushes gypsum board from stack lift platform to conveyor roll
  • Max. Load-bearing: 3000kg
  • Stroke: 1500mm
  • Min. Height: 620mm
  • Max. Height: 2000mm
  • Platform size: 1200*2400mm
Automatic Cutting Machine
  • Dual cutting system: vertical/longitudinal and horizontal cutting
  • Equipped with dust collector system
  • Converts 1.2*2.4m boards to 603*603mm/595*595mm tiles
  • Cutting speed: 15m/min
  • Cutting knives: Vertical/longitudinal: 3 blades; Horizontal: 5 blades
  • Overall power: 17.15KW
Technical Specifications
  • Sheet thickness: 5-30mm
  • Speed adjustment: Frequency conversion synchronous speed regulating
  • Annual capacity: 2-6 million Sq.m
  • Film material: PVC film, aluminum foils, decorative material
  • Board sheet material: PVC baseboard, gypsum board, wood board, sectional board, PVC foam board

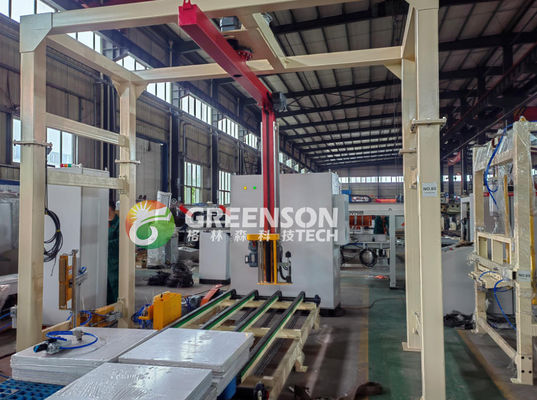

  • Stacking mode: 10 layers (4 packages/layer)
  • Cutting mode: Lengthways: 3 blades, Horizontal: 5 blades
  • Overall dimension: Length: 56000mm, Width: 9200mm
  • Lamination mode: Double side or single side options
