chaîne de production de tuile de plafond de gypse

Full Automatic Gypsum Ceiling Tile Production Line with 1300mm Effective Laminating and 2-6 Million Sq.m/year Capacity

Full Automatic Gypsum Ceiling Tile Production Line with 1300mm Effective Laminating and 2-6 Million Sq.m/year Capacity

Nom De Marque:	LVJOE
Numéro De Modèle:	1300FM
Nombre De Pièces:	1 ligne
Prix:	US $20000-200000
Conditions De Paiement:	L / C, T / T
Capacité à Fournir:	10 lignes par an

Informations détaillées

Description du produit

Informations détaillées

Lieu d'origine:

Hebei ， Chine (continentale)

Certification:

ISO CE

Nom de produit:

Tuiles de plafond de panneau de gypse de machine de stratification de double face complètement autom

Mot-clé:

machine de fabrication de carreaux de plafond en plâtre

Type de carte fini:

PVC Board de gypse stratifié

Plastiquant efficace:

1300 mm

Contrôle électrique:

Système PLC

Capacité de production:

2 à 6 millions de m²/an

Service après-vente:

Ingénieurs disponibles au service

Type de colle:

Glue d'eau pour le film PVC

Détails d'emballage:

Emballage standard

Capacité d'approvisionnement:

10 lignes par an

Mettre en évidence:

1300mm Effective Laminating Gypsum Ceiling Tile Production Line

2-6 million Sq.m/year Production Capacity Gypsum Board Laminating Machine

Adjustable Speed 2-15m/min PVC Laminated Gypsum Board Machine

Description du produit

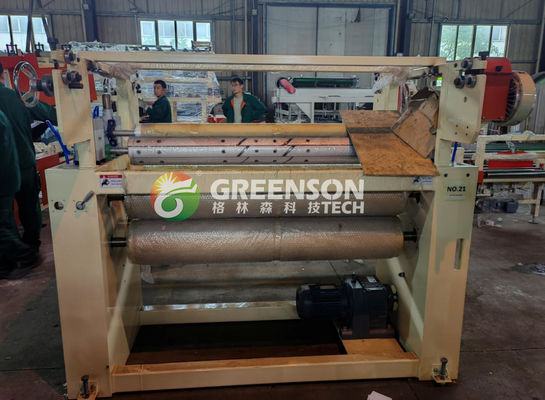

Full Automatic Advanced Double Side Laminating Machine for Gypsum Board Ceiling Tiles

Product Overview

This advanced double side laminating machine is designed for producing PVC laminated gypsum boards used as ceiling tiles and partition wall panels. The fully automatic system handles fiber glass, paper, PVC film, and aluminum foil lamination with precision and efficiency.

Key Specifications

Attribute	Value
Finished board type	PVC laminated gypsum board
Effective laminating width	1300mm
Electric control	PLC system
Production Capacity	2-6 million Sq.m/year
Speed	2-15m/min (adjustable)
After-sales Service	Engineers available to service
Warranty	1 year
Glue type	Water Glue for PVC film

Main Components

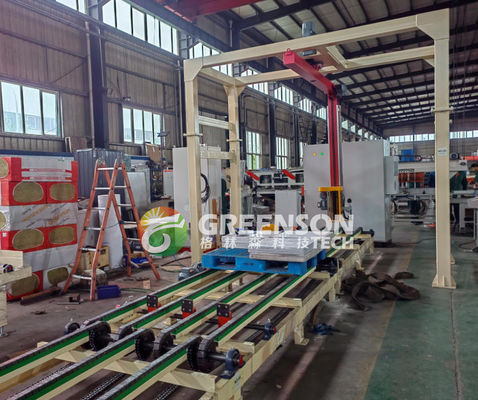

Automatic Gypsum Board Feeding Machine

The cylinder pushes gypsum boards from the stack lift platform to the conveyor roll for PVC and aluminum film lamination.

Max. Load-bearing: 3000kg

Stroke: 1500mm

Height range: 620mm - 2000mm

Platform size: 1200×2400mm

Automatic Cutting Machine

Features two cutting systems (vertical/longitudinal and horizontal) with dust collection, converting 1.2×2.4m boards into 603×603mm or 595×595mm tiles.

Cutting speed: 15m/min

Cutting knives: Vertical: 3 blades, Horizontal: 5 blades

Overall power: 17.15KW

Technical Specifications

Sheet thickness range: 5-30mm
Speed adjustment: Frequency conversion synchronous speed regulating
Annual capacity: 2-4 million Sq.m
Compatible film materials: PVC film, aluminum foils, decorative materials
Board materials: PVC baseboard, gypsum board, wood board, sectional board, PVC foam board
Stacking mode: 10 layers (4 packages/layer)
Lamination options: Double side (front and back simultaneously) or single side
Overall dimensions: 56000mm (L) × 9200mm (W)
